Guest Wi‑Fi That Blocks Your LAN, Fast Setup for Hosts & Small Biz

September 15, 2026
Guest Wi‑Fi That Blocks Your LAN, Fast Setup for Hosts & Small Biz

Enable a separate guest SSID, secure it with WPA2 or WPA3, and switch on client isolation so visitors get internet access only. That single toggle, buried in most router menus under "guest network" or "AP isolation," is the difference between a genuine security boundary and a second password to the same files, printers, and smart devices you'd rather keep private. Set it up, then test it before you hand out the password.

TL;DR:

  • Enabling client isolation on your guest network prevents visitors from accessing your main devices and local network resources.
  • Most routers from the last five years support guest SSIDs, secure them with WPA2 or WPA3, and require simply turning on and testing this feature.
  • Testing should confirm that guest devices can access the internet but cannot ping or browse devices on your main network or other guest devices.
  • Bandwidth caps of around 10 to 25 Mbps help ensure your own internet experience remains unaffected during guest use.
  • For complex setups like captive portals or multi-site VLANs, hiring professional services may be necessary to ensure proper configuration and security.
Myitbutler
myitbutler.com
Keep Guest Wi-Fi Away From Your LAN
Myitbutler provides remote IT support for secure network setup, troubleshooting, and ongoing supervision across distributed businesses and teams.
Get remote IT support

Table of Contents

What a guest network is and why it protects your devices

A guest network is a separate logical Wi-Fi network broadcast from the same router, but walled off from your main network. Visitors, contractors, or short-term tenants connect and get internet, nothing else.

It's genuinely useful for:

  • Airbnb-style rentals and holiday lets where you don't know who's connecting
  • Contractors or trades working on-site who need Wi-Fi but not file access
  • Isolating smart plugs, cameras, and other IoT devices from your laptop and phone
  • Cafés, salons, and small offices offering customer Wi-Fi without exposing the till system

One thing it won't do: protect anything you've already exposed to the internet, like a home server with port forwarding enabled. Guest network isolation only controls what happens between devices sitting on your own Wi-Fi.

What you need before you start

A few decisions up front save you from redoing the whole job halfway through.

  1. Confirm your router or mesh system supports a guest SSID or VLAN. Most consumer routers from the last five years do, and mesh systems like those from TP-Link, Netgear, and ASUS all include it as a standard feature.
  2. Find your admin login. This is usually the router's local IP address (commonly 192.168.0.1 or 192.168.1.1) typed into a browser, or the vendor's own app if you set the router up that way.
  3. Decide your SSID name and password policy. Avoid anything that identifies you personally (skip "SmithFamily" or your business name plus street address), and pick a rotation schedule, monthly for high-traffic setups, quarterly for quieter ones.
  4. Work out if you need extras. A captive portal, bandwidth caps, or a login page matter for businesses; most households can skip them.
  5. Back up your current settings before changing anything. Most admin panels have a one-click export under "system" or "backup and restore."

Step-by-step guest Wi-Fi network setup for most routers and mesh systems

This sequence works whether you're staring at a browser-based admin panel or a vendor app on your phone.

  1. Log in to your router. Type the local IP address into a browser, or open the vendor app (TP-Link Tether, Netgear Nighthawk, ASUS Router, and similar apps all handle this). Back up your settings first.
  2. Find the guest network section. Look for "Guest Network," "Guest Access," or "Guest Wi-Fi" in the wireless settings menu. Enable it.
  3. Name it something neutral. "Guest-WiFi" or "Visitor-Net" works fine. Don't reuse your main SSID's name.
  4. Set security to WPA2 or WPA3 personal. If you've got older devices visiting (some smart TVs and budget IoT gear still don't support WPA3), use mixed or transition mode so both standards work side by side. TP-Link's support documentation walks through the exact menu paths for its router range, and the same basic pattern holds across most brands.
  5. Turn on client isolation. This is the step that actually matters. Look for "AP isolation," "client isolation," or "allow guests to see each other" and disable local network access. CNET's guide is blunt about it: without this switch flipped, your guest SSID is barely a formality.
  6. Check the DHCP settings. Most routers automatically hand guest devices IP addresses from a separate pool, so you rarely need to touch this manually. Confirm the guest subnet differs from your main LAN subnet if the option is visible.
  7. Add optional extras if you need them. Schedules, bandwidth caps, or a captive portal can wait until the core setup works.
  8. Save, apply, and reboot if prompted.
  9. Test from a visitor device. Connect a spare phone or laptop to the guest network. Confirm it reaches the internet, confirm it can't ping or browse to a known device on your main network, and confirm it can't see other guest devices connected at the same time.

Pro Tip: Screenshot your settings once they're working. Firmware updates occasionally reset guest network configuration to default, and having a reference saves you from rebuilding it from memory at 11pm.

Business features: captive portals, vouchers and login options

Cafés, salons, co-working spaces, and short-term rentals often want more than a plain password.

  • Captive portals show a branded login page before granting access, useful for displaying terms of use, time limits, or a welcome message.
  • Vouchers or time-limited codes let you control exactly how long a session lasts, handy for hourly rentals or paid Wi-Fi models.
  • Social login trades convenience for data collection, worth thinking twice about if you're not set up to handle that responsibly.
  • OPNsense, a free firewall platform, documents a full captive portal and voucher workflow with example DHCP ranges and firewall rules, useful if your router firmware doesn't offer this natively and you're running a dedicated appliance.

Keep guest data collection minimal. A short acceptable-use line on the portal ("this network is for internet browsing only") covers you without needing a name, email, and date of birth from every visitor.

Isolation, DHCP and simple tests to verify protection

Client isolation works by keeping guest devices on their own IP subnet and firewalling that subnet off from your LAN. Guest devices typically pull addresses from a separate pool (something like 192.168.4.x while your main network sits on 192.168.1.x), and you don't usually need to configure this by hand.

Client isolation is the single most important switch in this whole setup. Meraki's documentation explains that it stops wireless clients from talking to each other or to the LAN, and that NAT mode delivers this isolation by default while bridge mode often doesn't.

Run three checks once it's live:

  • Open a website on the guest device. It should load normally.
  • Try to reach a known device on your main network by its IP address. It should fail.
  • Check whether the guest device shows up to other guest devices in file sharing or network discovery. It shouldn't.

If any of those three fail, isolation isn't switched on properly, no matter what the settings menu says.

Bandwidth limits and QoS: stop guests hogging your connection

Cap the guest pool when you're hosting an event, running a shared premises, or simply have enough visitors that your own video calls start stuttering.

  • A sensible starting point for a shared guest pool sits around 10 to 25 Mbps, adjustable depending on how much headroom your connection has.
  • Look for "bandwidth control," "QoS," or "speed limit" in your router's wireless or traffic settings.
  • If you're running a VLAN setup instead of a simple guest SSID toggle, most managed switches and firewalls support rate-limiting per VLAN as an alternative.
  • Balance matters here: cap it too hard and guests complain about buffering; leave it uncapped and your own work traffic suffers during busy periods.

Troubleshooting the common problems

Most guest network hiccups fall into three categories.

  1. SSID not showing up. Check that broadcast is enabled (some routers let you hide the SSID by mistake) and confirm any access schedule isn't currently restricting visibility. A router reboot fixes this more often than you'd expect.
  2. Devices won't connect. Double-check the password, confirm the security mode matches what the device supports (older gear may not handle WPA3 alone, hence mixed mode), and check the DHCP pool hasn't run out of addresses during a busy period. Reboot both the client device and the router.
  3. Guests can still reach your main network. Go back into the isolation settings and confirm they're actually saved and applied, not just toggled and left unsaved. Re-run the three tests from the isolation section above after any change.

When to DIY and when to call in a managed IT service

A single-site home or small shop setup is a reasonable DIY project. Where it gets genuinely tricky is multi-site VLANs, corporate compliance requirements, or a captive portal that needs to integrate with a booking system.

A team holding industry certifications and backed by enterprise IT experience can be useful when a setup needs professional coordination rather than trial and error. If you'd rather have someone configure it, test the isolation properly, and hand you a result you can trust, a short consult is usually the faster path.

— Thomas

How Myitbutler sets up and tests your guest network remotely

Myitbutler is the practical alternative to spending an evening lost in router menus, especially if you're running a short-term rental, small office, or multi-device household and want it done right the first time. The service covers remote configuration of your guest SSID, verification that isolation is actually blocking LAN access (not just toggled on and forgotten), captive portal setup if you need branded guest access or vouchers, and a short test report confirming everything works as it should.

Myitbutler

Pricing is fixed and transparent, no ongoing contract required, and sessions are coordinated remotely via WhatsApp, Zoom, or email, so time zones aren't a barrier whether you're running a property from overseas or managing a small team across borders. If your setup involves more than one router, a business captive portal, or you'd simply rather not risk getting isolation wrong, book a free chat or head to Myitbutler to arrange a paid consult and get it configured properly.

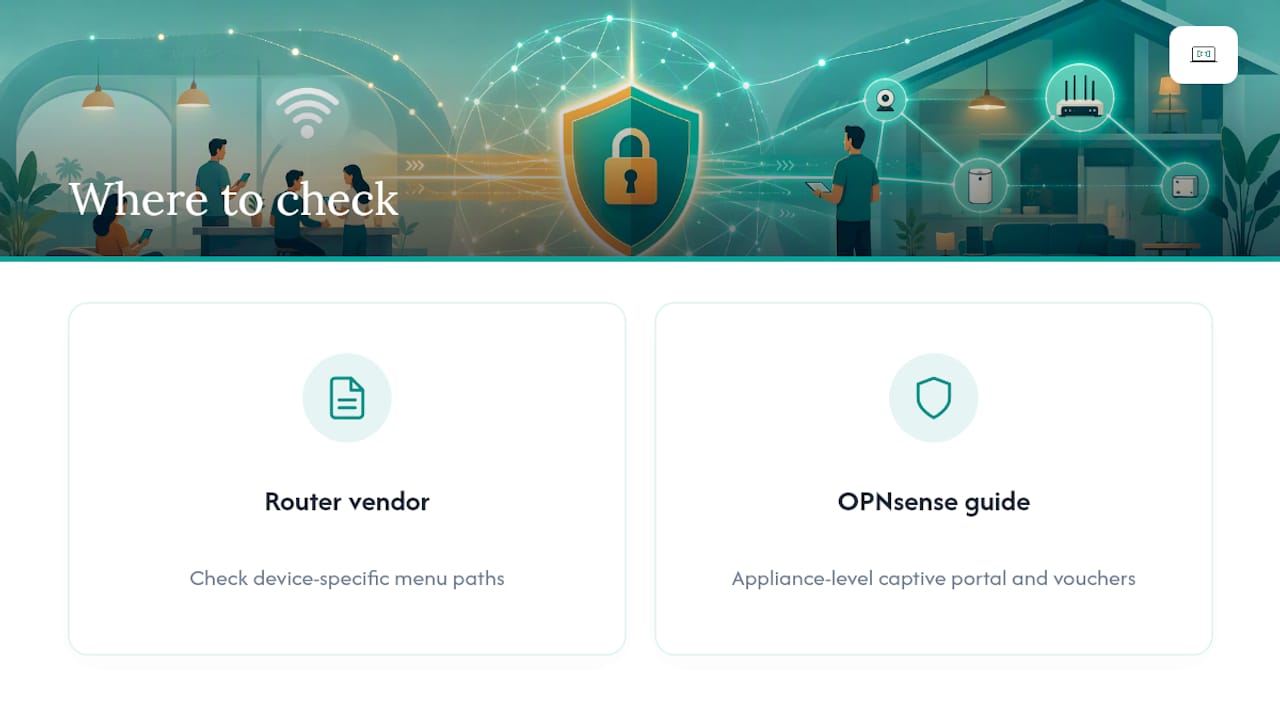

Where to check vendor-specific steps

Where to check vendor-specific steps — overview diagram

For exact menu paths on your own hardware, check your router vendor's own support documentation, and for advanced captive portal or voucher setups, OPNsense's guest network guide covers the appliance-level detail.

Sources

FAQ

Can I set up a guest Wi-Fi network myself?

Yes. Most routers and mesh systems made in the last few years include a guest network option in their admin panel or companion app, and setup usually takes under fifteen minutes.

How do I connect to a guest Wi-Fi network?

Select the guest SSID from your device's Wi-Fi list and enter the password provided, exactly as you would join any other Wi-Fi network. No special app or configuration is needed on the visitor's side.

What are the disadvantages of using a guest Wi-Fi network?

The main limitations are added router configuration time, occasional compatibility issues with older devices on WPA3-only networks, and the fact that guest networks don't protect services you've already exposed to the internet. Properly configured isolation has no real downside for security.

Does a guest network use a different IP address range?

Yes. Guest devices typically pull addresses from a separate DHCP pool or subnet than your main network, which is part of what keeps the two networks logically separated even though they share the same router.
